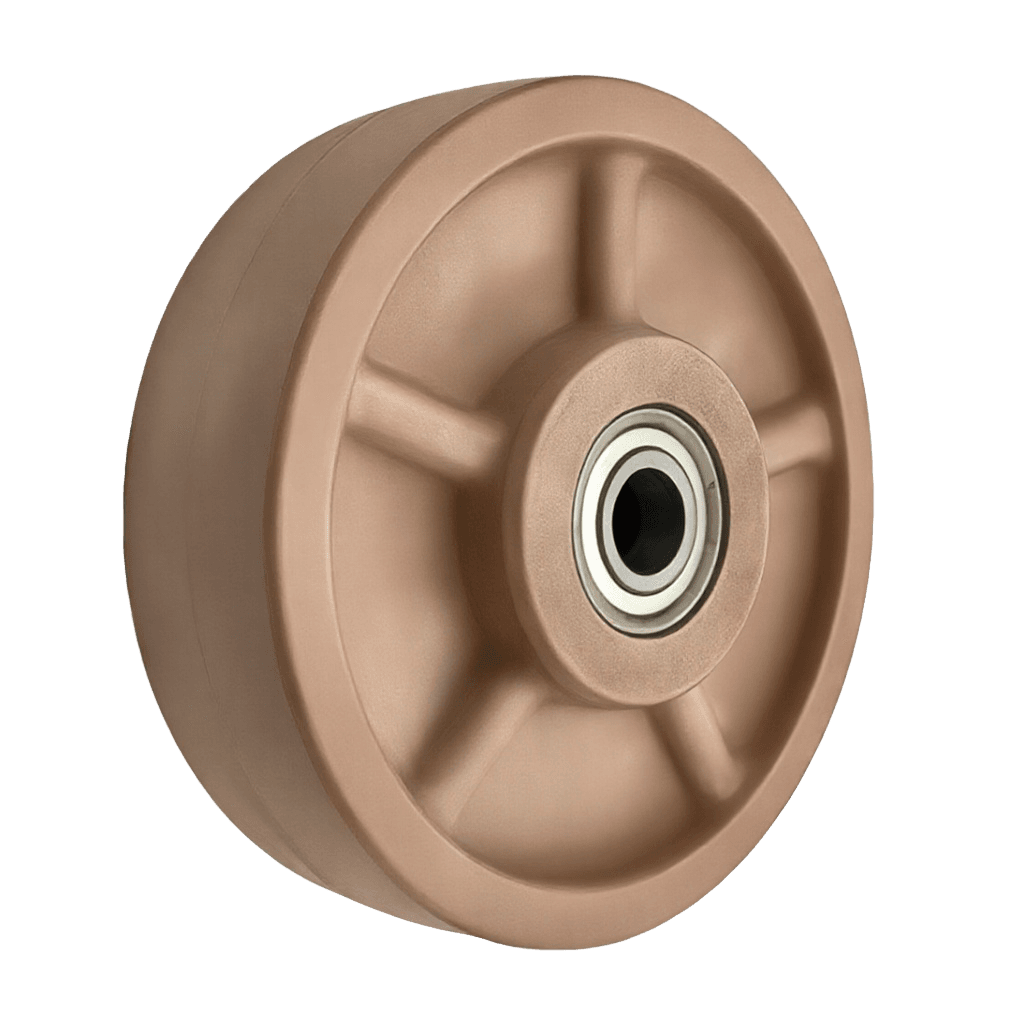

230°C Hi-Temp Nylon Castor – 4" Swivel
HPDS-Ph4230°C Rated
Load Capacity
280 KG
Wheel Material
Hi_Temp_Nylon
Wheel Size
4" (100mm)
Bearing Type
double_ball
SKU ARCHIVE: HPDS-Ph4 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | HPDS-Ph4 |
| Load Capacity | 280 kg |
| Wheel Material | Hi-Temp Nylon |
| Bracket Type | Swivel |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 100 mm |
| Wheel Width | 50 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 60 mm |
| Overall Height | 142 mm |
| Top Plate Size | 111x96 |
| Hole Spacing | 83x73 |
| Temperature Rating | 230°C |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | heat-resistant, 230c, nylon, oven, powder-coat, high-temperature |
Engineering Notes.
Heavy-duty 4-inch hi-temp nylon castor rated to 230°C. Double ball bearing for smooth rolling in powder-coating lines, industrial ovens, and high-heat environments. Swivel. 280kg.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
