Technical Image Pending
Reference Specification

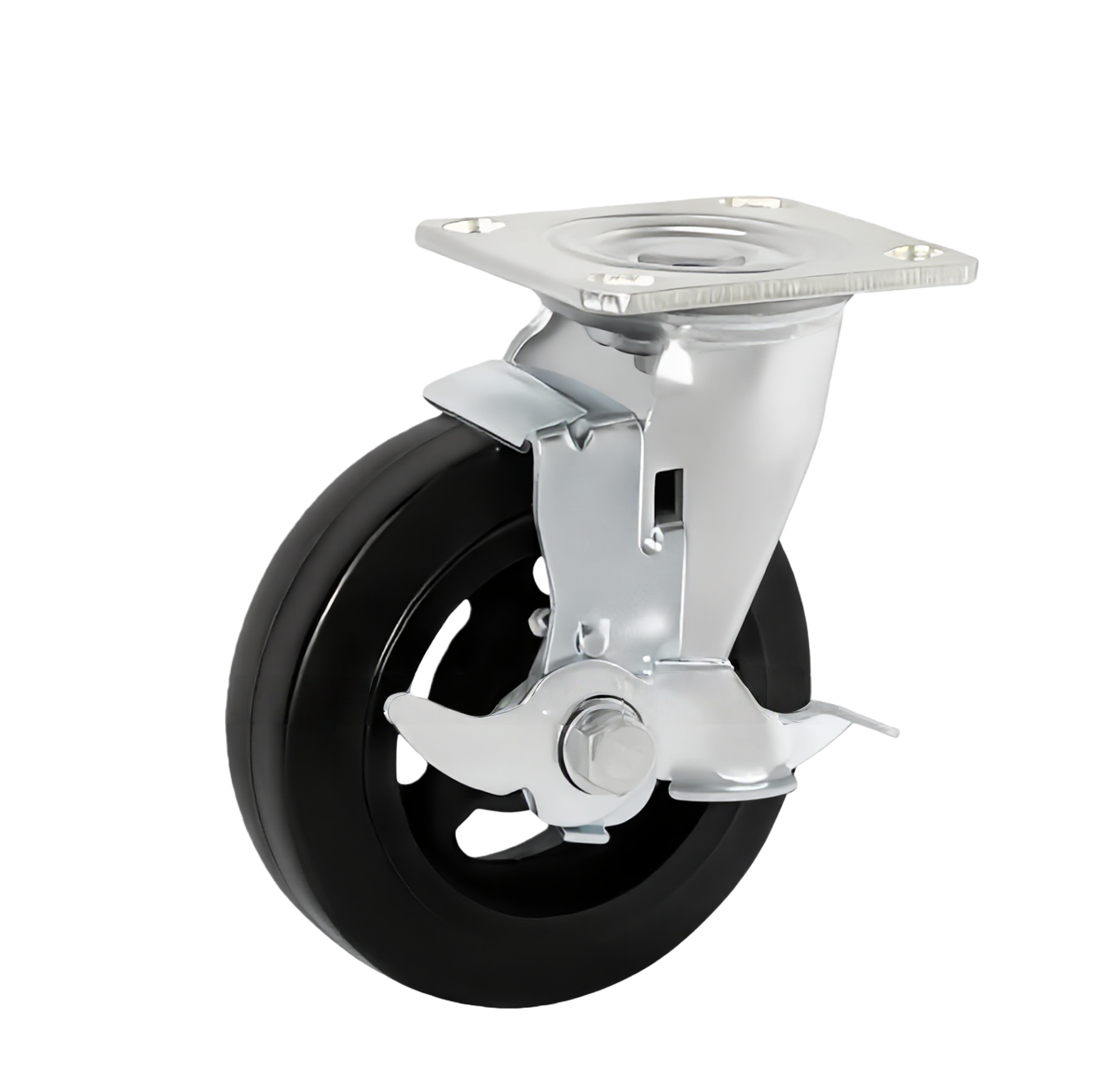

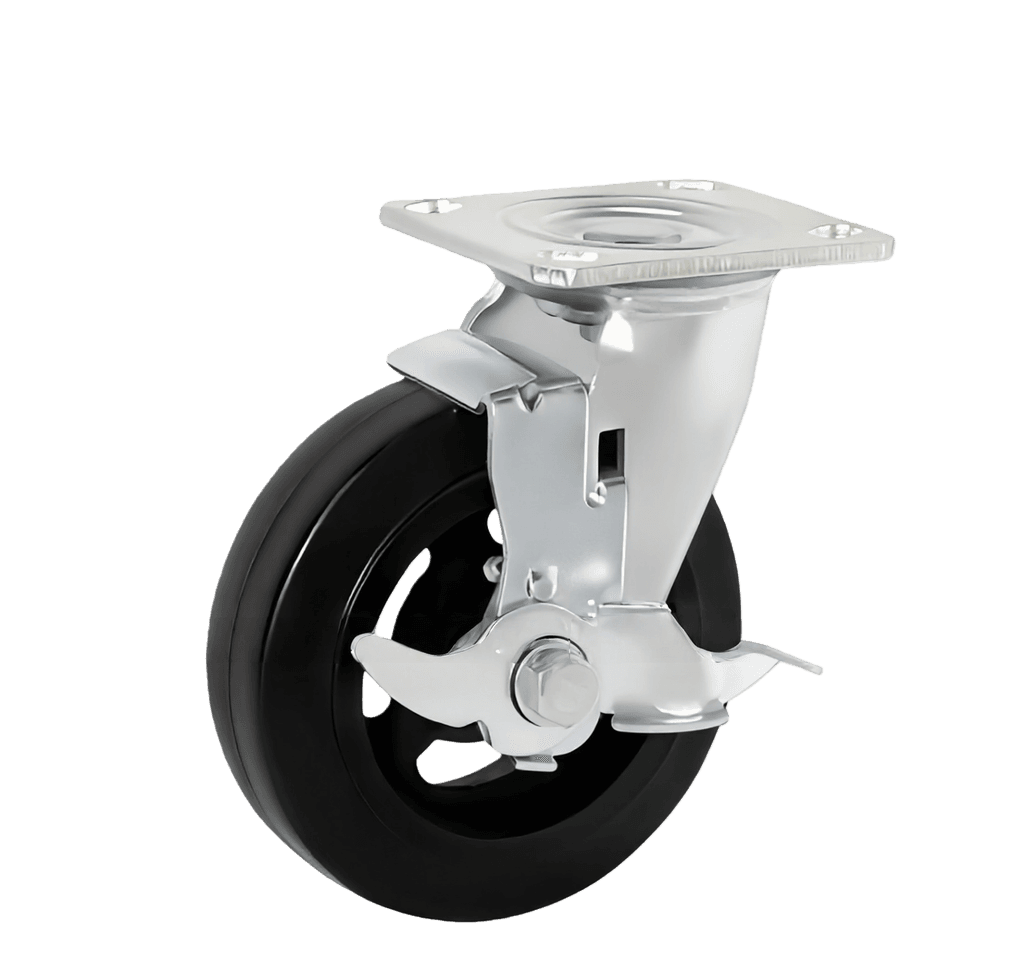

Heavy Duty Moulded Rubber Castor – 5" Side Brake
HPRB-CRB5
Load Capacity
150 KG
Wheel Material
Rubber
Wheel Size
5" (125mm)
Bearing Type
roller
SKU ARCHIVE: HPRB-CRB5 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | HPRB-CRB5 |
| Load Capacity | 150 kg |
| Wheel Material | Rubber |
| Bracket Type | Side Brake |
| Bearing Type | Roller Bearing |
| Wheel Diameter | 125 mm |
| Wheel Width | 50 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 63 mm |
| Overall Height | 165 mm |
| Top Plate Size | 112x96 |
| Hole Spacing | 85x72 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | warehouse, heavy-industrial, vibration-damping, manufacturing |
Engineering Notes.
Heavy-duty 5-inch moulded rubber castor with roller bearing. Robust roller bearing for heavy sustained loads; rubber wheel absorbs vibration and protects floors. Side Brake. 150kg.
