Reference Specification

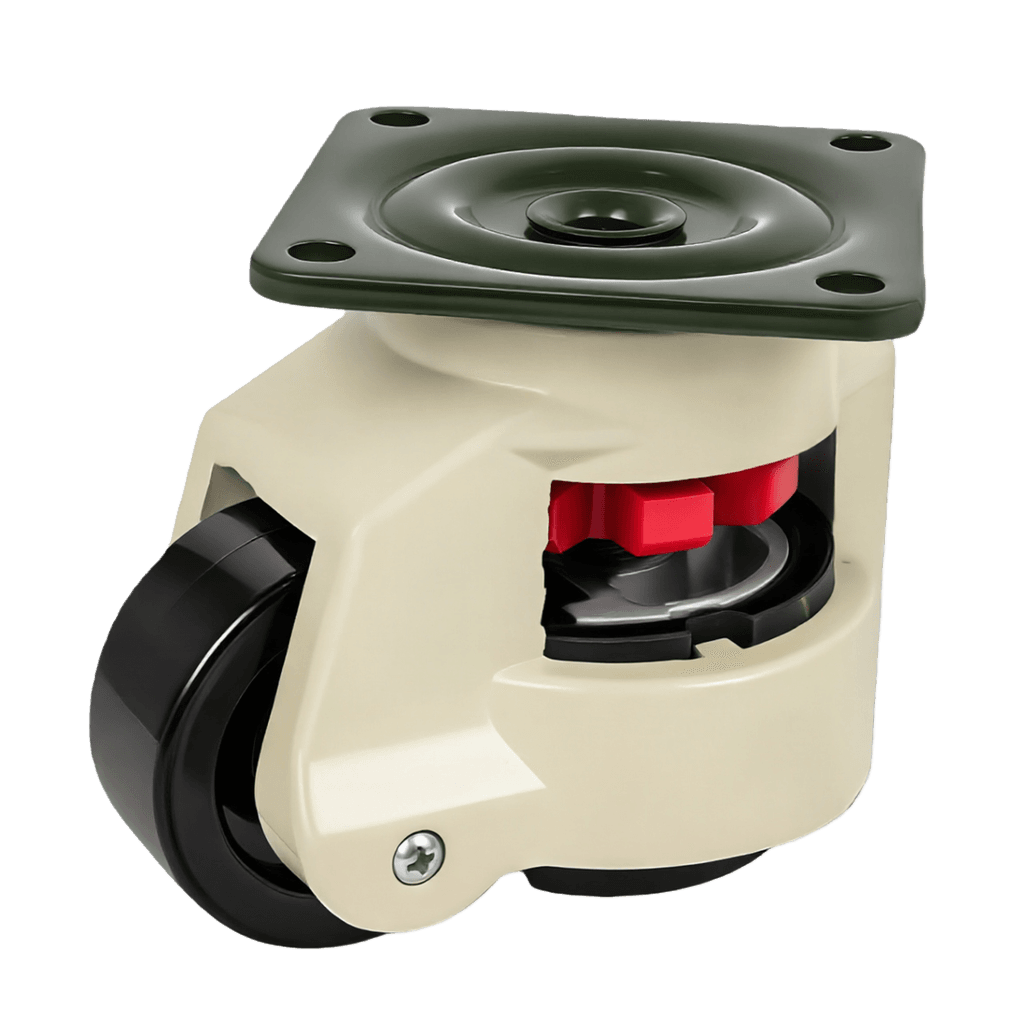

Levelling Castor – Plate Mount 42mm (50kg)
FM-40F
Load Capacity
50 KG
Wheel Material
MC_Nylon
Wheel Size
1.5" (42mm)
Bearing Type
double_ball
SKU ARCHIVE: FM-40F · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | FM-40F |
| Load Capacity | 50 kg |
| Wheel Material | MC Nylon |
| Bracket Type | Rigid |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 42 mm |
| Wheel Width | 20 mm |
| Hub Bore | — |
| Hub Length | — |
| Overall Height | 71 mm |
| Top Plate Size | 42x42 |
| Hole Spacing | 55x55 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | levelling, machine-levelling, vibration-isolation, equipment |
Engineering Notes.
Plate-mount levelling castor with adjustable height. 42mm MC nylon wheel. 50kg per unit capacity. Plate size 42x42mm, fixing 55x55mm. Ideal for machinery levelling and vibration isolation.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
