Technical Image Pending
Reference Specification

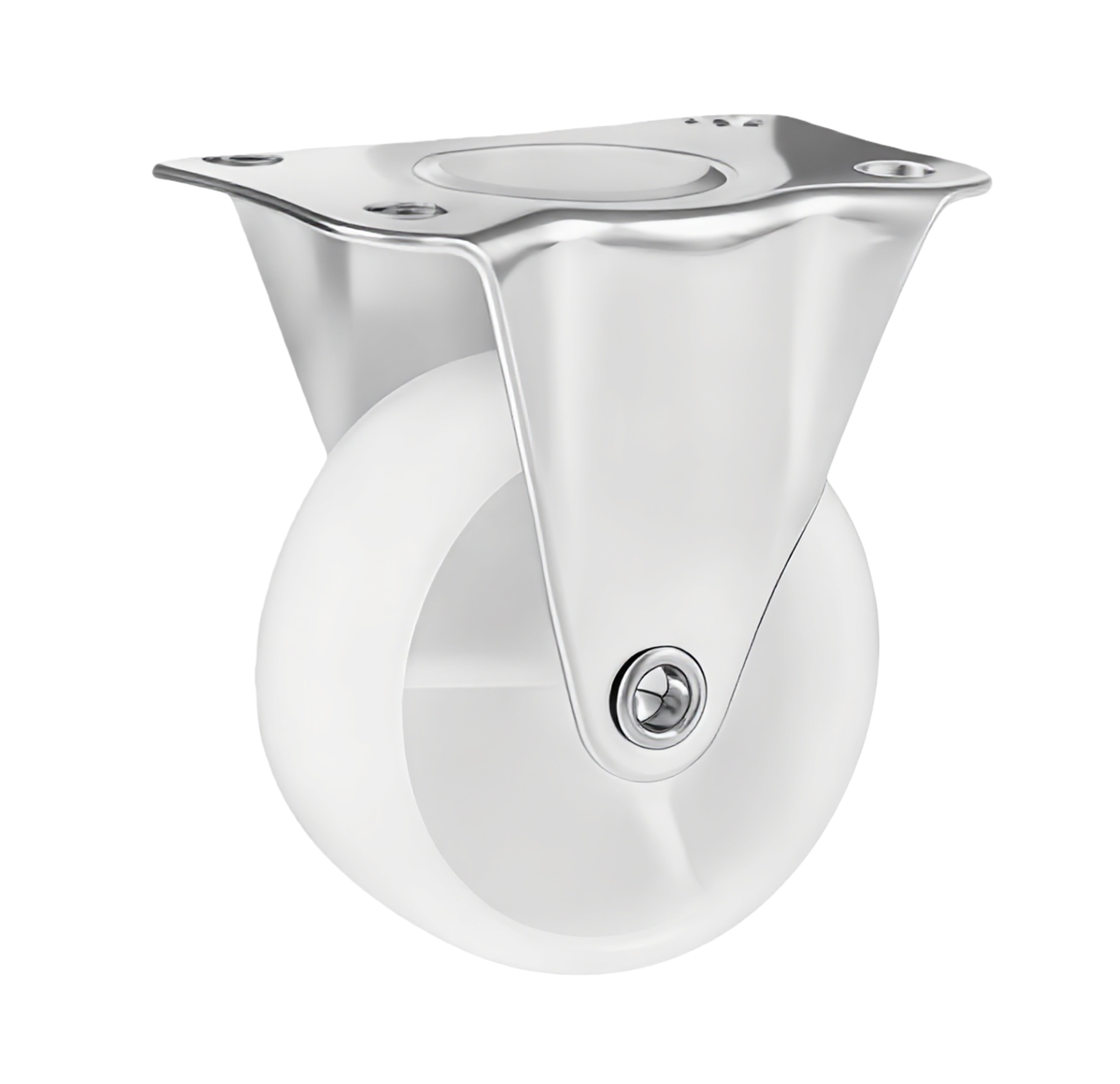

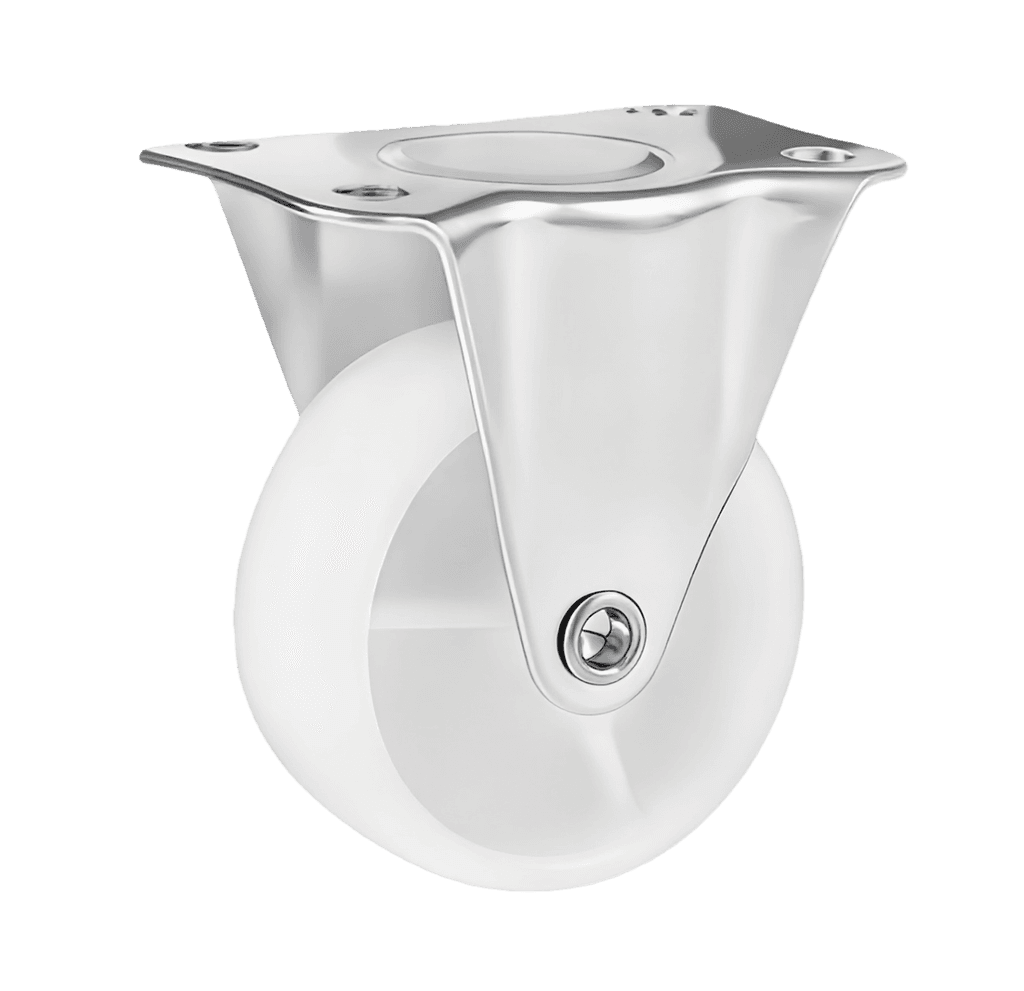

Light Duty PP Castor – 3" Rigid
LPPR-PP3
Load Capacity
60 KG
Wheel Material
PP
Wheel Size
3" (80mm)
Bearing Type
plain
SKU ARCHIVE: LPPR-PP3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | LPPR-PP3 |
| Load Capacity | 60 kg |
| Wheel Material | Polypropylene |
| Bracket Type | Rigid |
| Bearing Type | Plain Bore |
| Wheel Diameter | 80 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 40 mm |
| Overall Height | 89 mm |
| Top Plate Size | 80x60 |
| Hole Spacing | 60x50 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | furniture, office, retail, display, light-duty |
Engineering Notes.
Light-duty 3-inch polypropylene castor with plain bore bearing. Ideal for furniture, display stands, office carts, and light trolleys. Zinc-plated steel rigid bracket. Temperature range −20°C to +80°C.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
WhatsApp Engineering
