Reference Specification

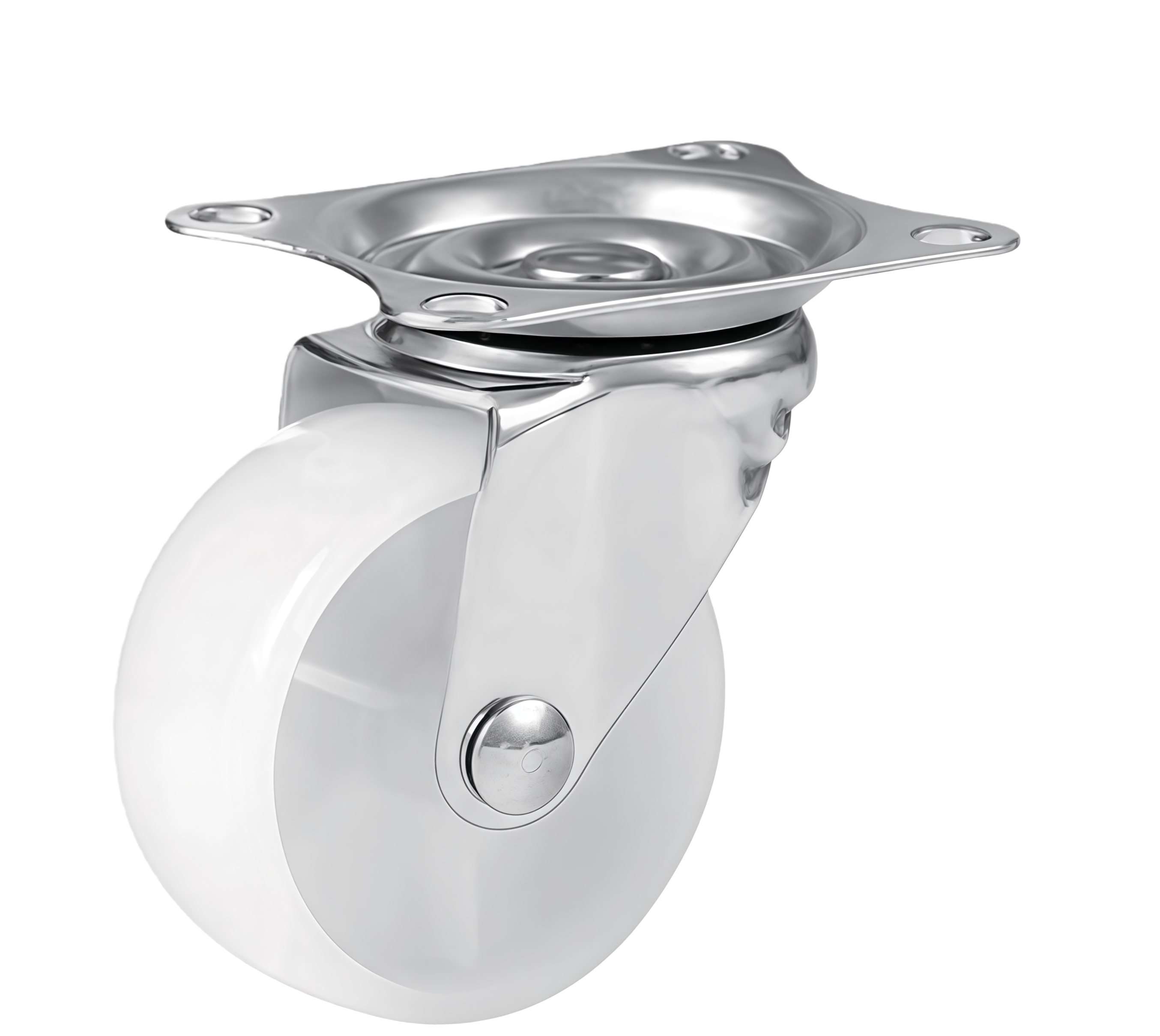

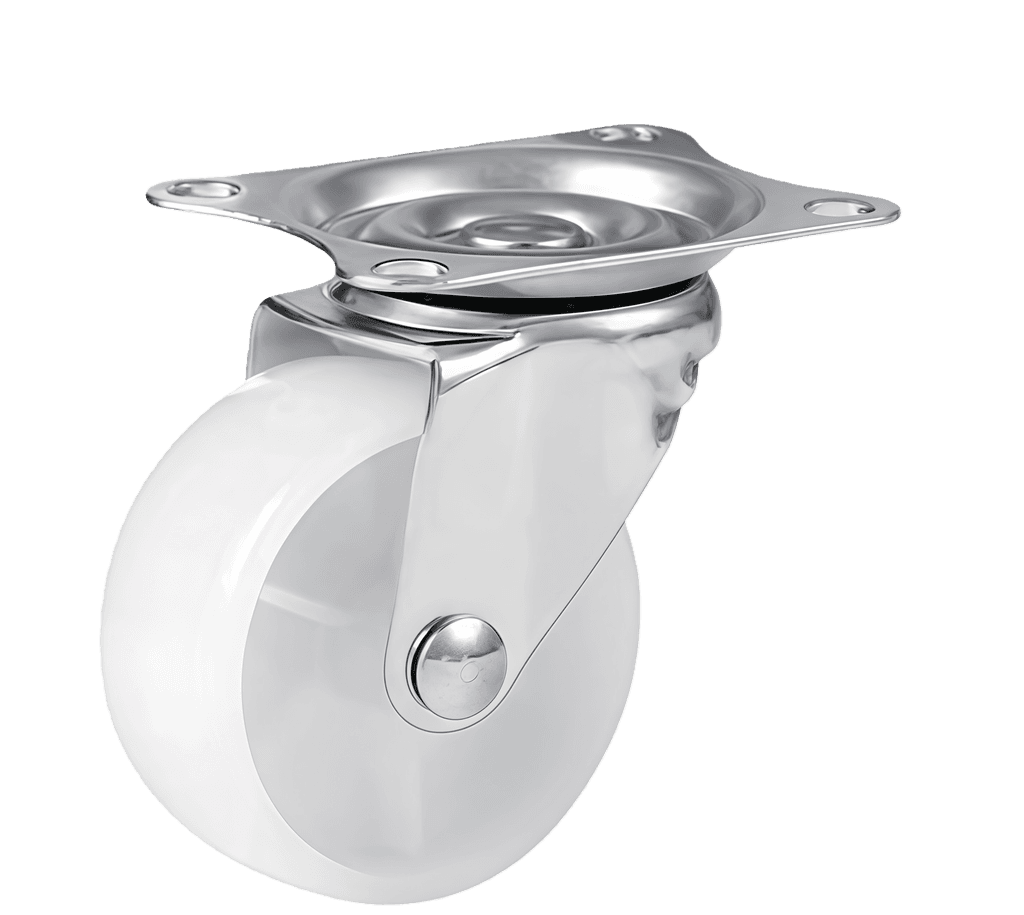

Light Duty PP Castor – 5" Swivel
LPPS-PP5
Load Capacity
80 KG
Wheel Material
PP
Wheel Size
5" (125mm)
Bearing Type
plain
SKU ARCHIVE: LPPS-PP5 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | LPPS-PP5 |
| Load Capacity | 80 kg |
| Wheel Material | Polypropylene |
| Bracket Type | Swivel |
| Bearing Type | Plain Bore |
| Wheel Diameter | 125 mm |
| Wheel Width | 35 mm |
| Hub Bore | ⌀15 mm |
| Hub Length | 40 mm |
| Overall Height | 133 mm |
| Top Plate Size | 102x84 |
| Hole Spacing | 80x60 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | furniture, office, retail, display, light-duty |
Engineering Notes.
Light-duty 5-inch polypropylene castor with plain bore bearing. Ideal for furniture, display stands, office carts, and light trolleys. Zinc-plated steel swivel bracket. Temperature range −20°C to +80°C.
