Technical Image Pending
Reference Specification

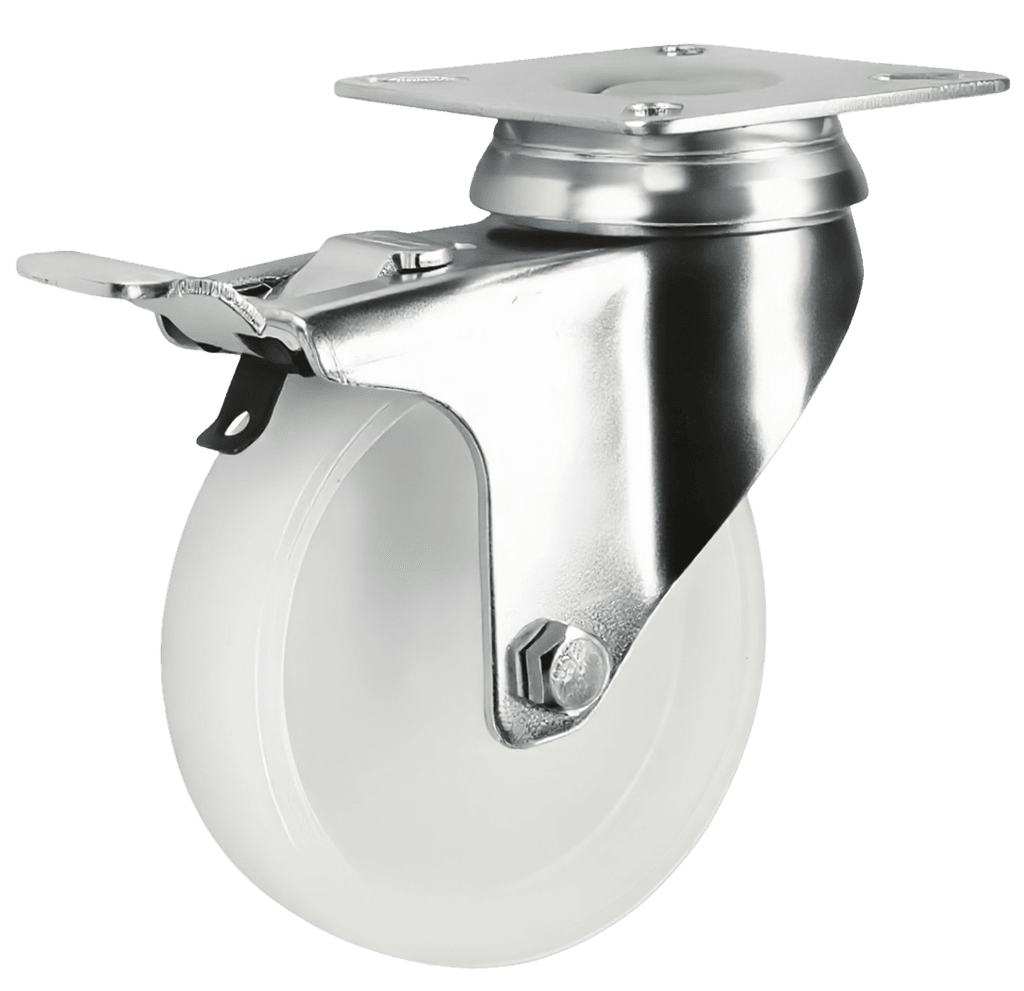

Light Duty PP Castor – 8" Top Brake
LPPT-PP8
Load Capacity
150 KG
Wheel Material
PP
Wheel Size
8" (200mm)
Bearing Type
plain
SKU ARCHIVE: LPPT-PP8 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | LPPT-PP8 |
| Load Capacity | 150 kg |
| Wheel Material | Polypropylene |
| Bracket Type | Top Brake |
| Bearing Type | Plain Bore |
| Wheel Diameter | 200 mm |
| Wheel Width | 45 mm |
| Hub Bore | ⌀20 mm |
| Hub Length | 40 mm |
| Overall Height | 211 mm |
| Top Plate Size | 135x105 |
| Hole Spacing | 105x75 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | furniture, office, retail, display, light-duty |
Engineering Notes.
Light-duty 8-inch polypropylene castor with plain bore bearing. Ideal for furniture, display stands, office carts, and light trolleys. Zinc-plated steel top brake bracket. Temperature range −20°C to +80°C.
