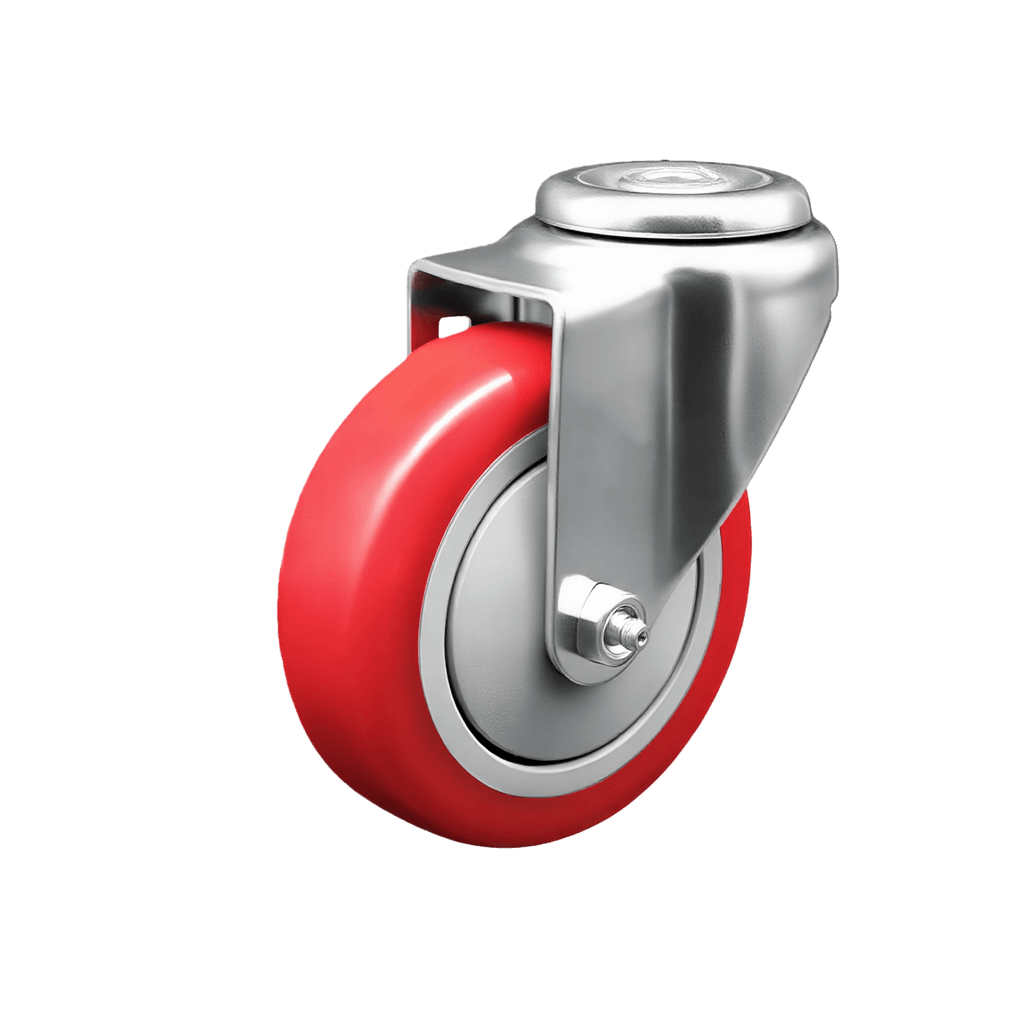

Medium Duty Bolt-Hole PU Castor – 3" Swivel
MBDS-PU3
Load Capacity
80 KG
Wheel Material
PU
Wheel Size
3" (75mm)
Bearing Type
double_ball
SKU ARCHIVE: MBDS-PU3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MBDS-PU3 |
| Load Capacity | 80 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Swivel |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 75 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 29 mm |
| Overall Height | 84 mm |
| Top Plate Size | 10 |
| Hole Spacing | |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | bolt-hole, shelving, equipment, industrial |
Engineering Notes.
Medium-duty 3-inch red PU bolt-hole castor with double ball bearing. Mounts through a 10 mm hole in equipment frames or shelving. Swivel. 80kg.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
