Reference Specification

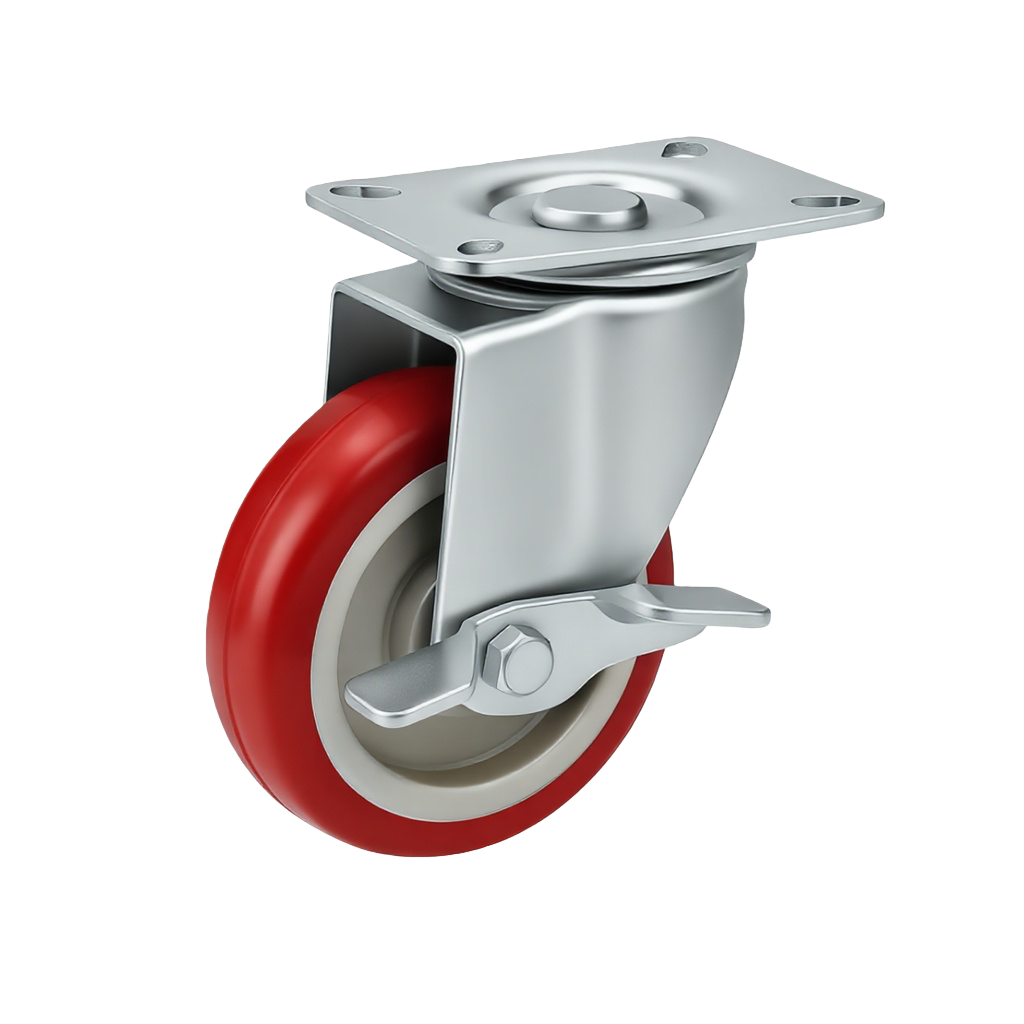

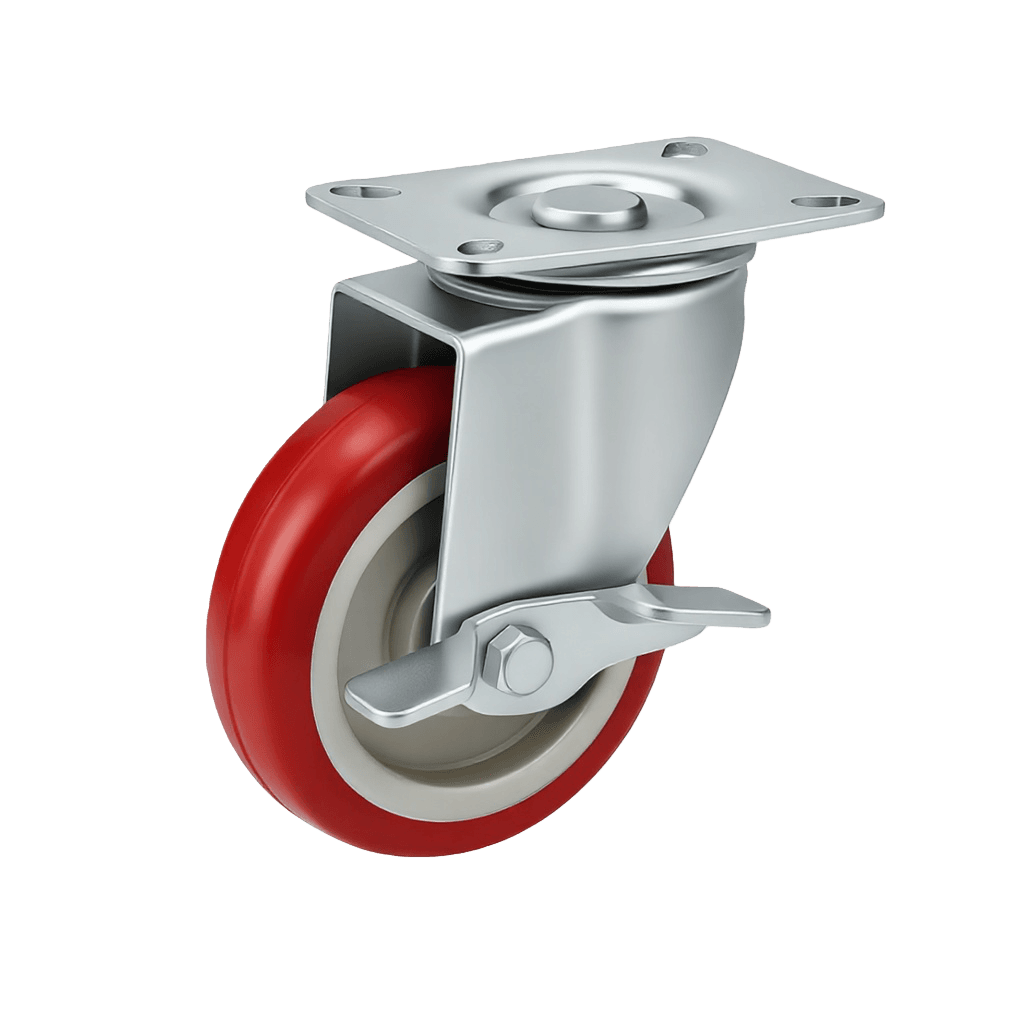

Medium Duty PU Castor – 5" Side Brake
MPDB-PU5
Load Capacity
120 KG
Wheel Material
PU
Wheel Size
5" (125mm)
Bearing Type
double_ball
SKU ARCHIVE: MPDB-PU5 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDB-PU5 |
| Load Capacity | 120 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Side Brake |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 125 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 127 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, medical, food-processing, commercial |
Engineering Notes.
Medium-duty 5-inch red polyurethane castor with double ball bearing. Hard-wearing PU compound protects floors. Side Brake configuration. 120kg load capacity.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
