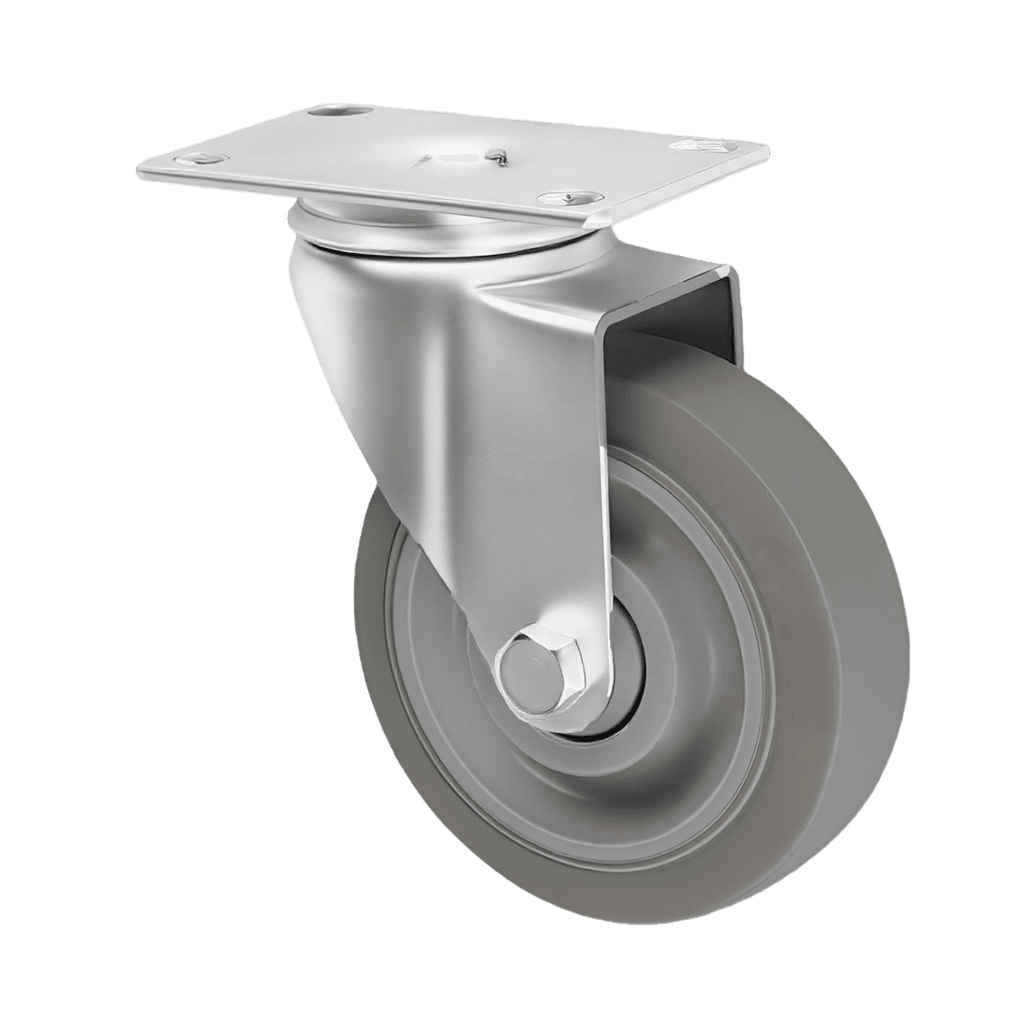

Medium Duty Rubber Castor – 3" Swivel
MPDS-RB3
Load Capacity
70 KG
Wheel Material
Rubber
Wheel Size
3" (75mm)
Bearing Type
double_ball
SKU ARCHIVE: MPDS-RB3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDS-RB3 |
| Load Capacity | 70 kg |
| Wheel Material | Rubber |
| Bracket Type | Swivel |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 75 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀10 mm |
| Hub Length | 40 mm |
| Overall Height | 110 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | medical, warehouse, vibration-damping, floor-protection |
Engineering Notes.
Medium-duty 3-inch grey rubber castor with double ball bearing. Soft rubber wheel absorbs vibration and protects sensitive floor surfaces. Swivel. 70kg.
