Reference Specification

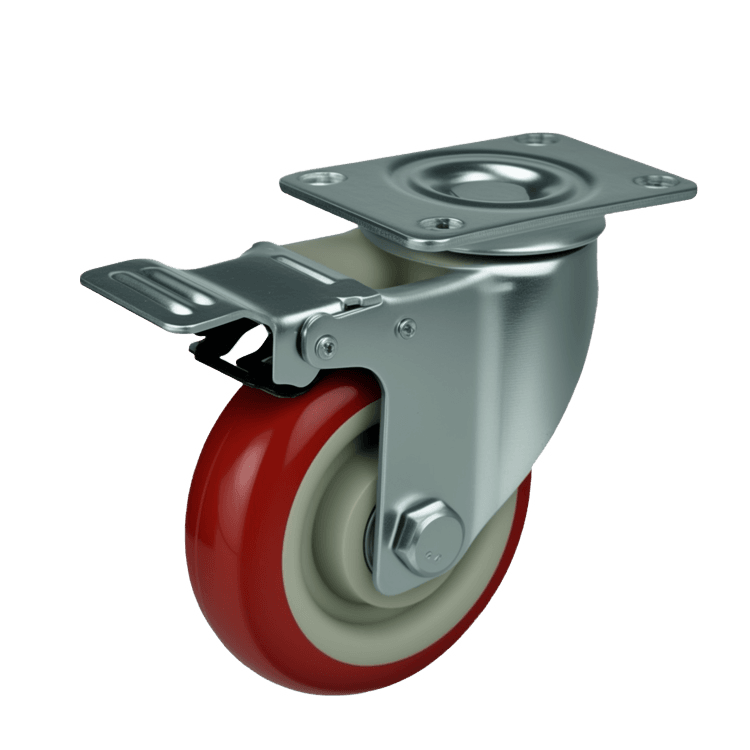

Medium Duty PU Castor – 4" Top Brake
MPDT-PU4
Load Capacity
100 KG
Wheel Material
PU
Wheel Size
4" (100mm)
Bearing Type
double_ball
SKU ARCHIVE: MPDT-PU4 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDT-PU4 |
| Load Capacity | 100 kg |
| Wheel Material | Polyurethane |
| Bracket Type | Top Brake |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 100 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 111 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, medical, food-processing, commercial |
Engineering Notes.
Medium-duty 4-inch red polyurethane castor with double ball bearing. Hard-wearing PU compound protects floors. Top Brake configuration. 100kg load capacity.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
