Reference Specification

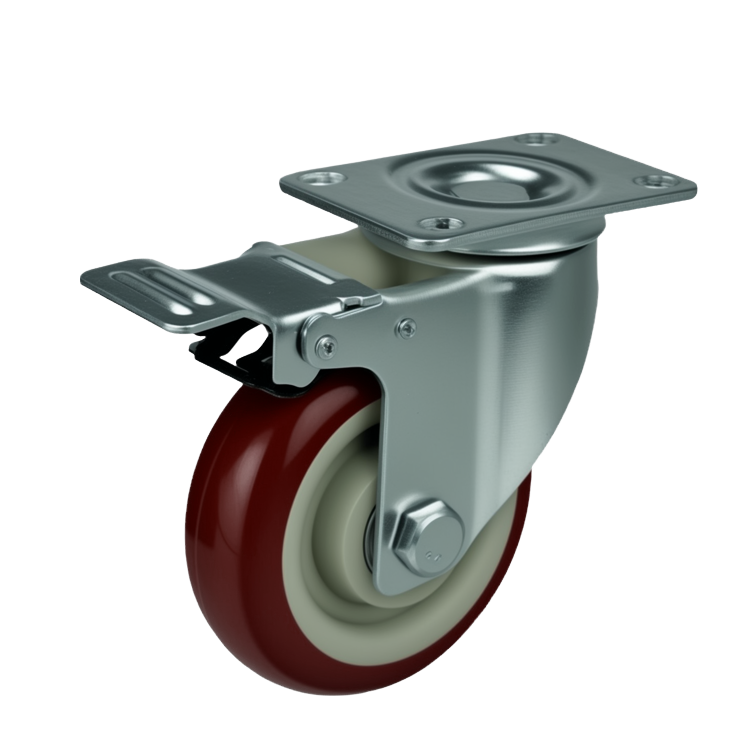

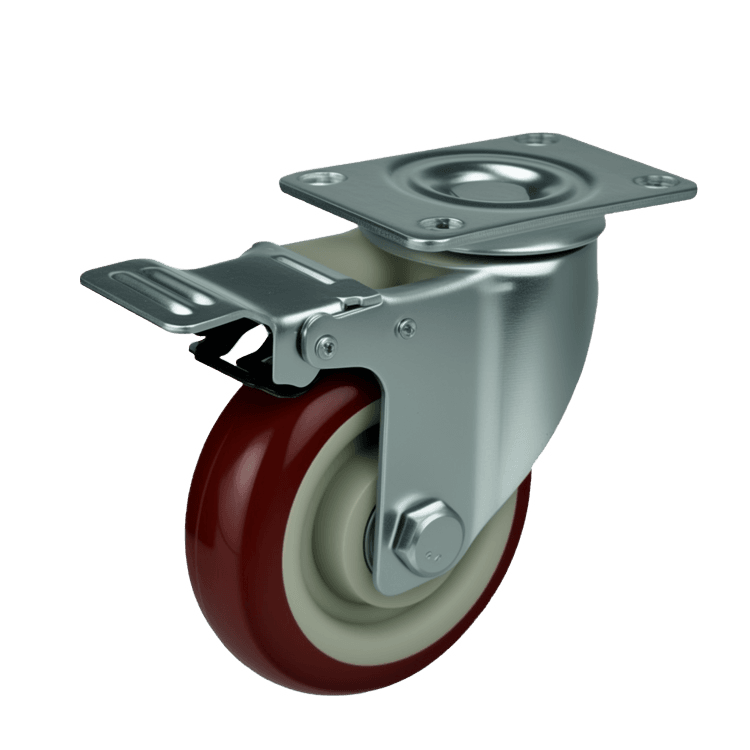

Medium Duty PVC Castor – 3" Top Brake
MPDT-PVC3
Load Capacity
70 KG
Wheel Material
PVC
Wheel Size
3" (75mm)
Bearing Type
double_ball
SKU ARCHIVE: MPDT-PVC3 · MANUFACTURING LEAD: 1–3 DAYS
Technical Blueprint.
| Technical Spec | Value |
|---|---|
| SKU | MPDT-PVC3 |
| Load Capacity | 70 kg |
| Wheel Material | PVC |
| Bracket Type | Top Brake |
| Bearing Type | Double Ball Bearing |
| Wheel Diameter | 75 mm |
| Wheel Width | 32 mm |
| Hub Bore | ⌀12 mm |
| Hub Length | 30 mm |
| Overall Height | 108 mm |
| Top Plate Size | 79x62 |
| Hole Spacing | 72x44 |
| ESD Safe | No |
| Stainless Steel | No |
| Applications | industrial, commercial, chemical-resistant |
Engineering Notes.
Medium-duty 3-inch grey PVC castor with double ball bearing. Good chemical resistance for industrial trolleys and commercial equipment. Top Brake. 70kg load.
Non-Standard Specs?
"We stock many variants not shown online. We can source custom systems from our principals within 10 days."
